Product parameters:
Model: THZ-160
Volume (L): 160
Door opening method: single door opening
Temperature range (° C): Room temperature+5~65
Temperature resolution (° C): 0.1
Temperature fluctuation (° C): ± 0.5
Temperature uniformity (° C): ± 0.5
Oscillation frequency (rpm): Single layer: 40-280rpm, Double layer: 40-200rpm
Oscillation mode: cyclotron oscillation
Power W: 500
Working hours: continuous
Amplitude (mm): 20
Environmental temperature (° C): 10~30
Tray size (mm): 400X350
Inner container size (mm): 480X460X500
Dimensions (mm): 584X577X816
Timing range (min): 1-9999
Power supply: 220V 50Hz
- Product Details
- Product manual

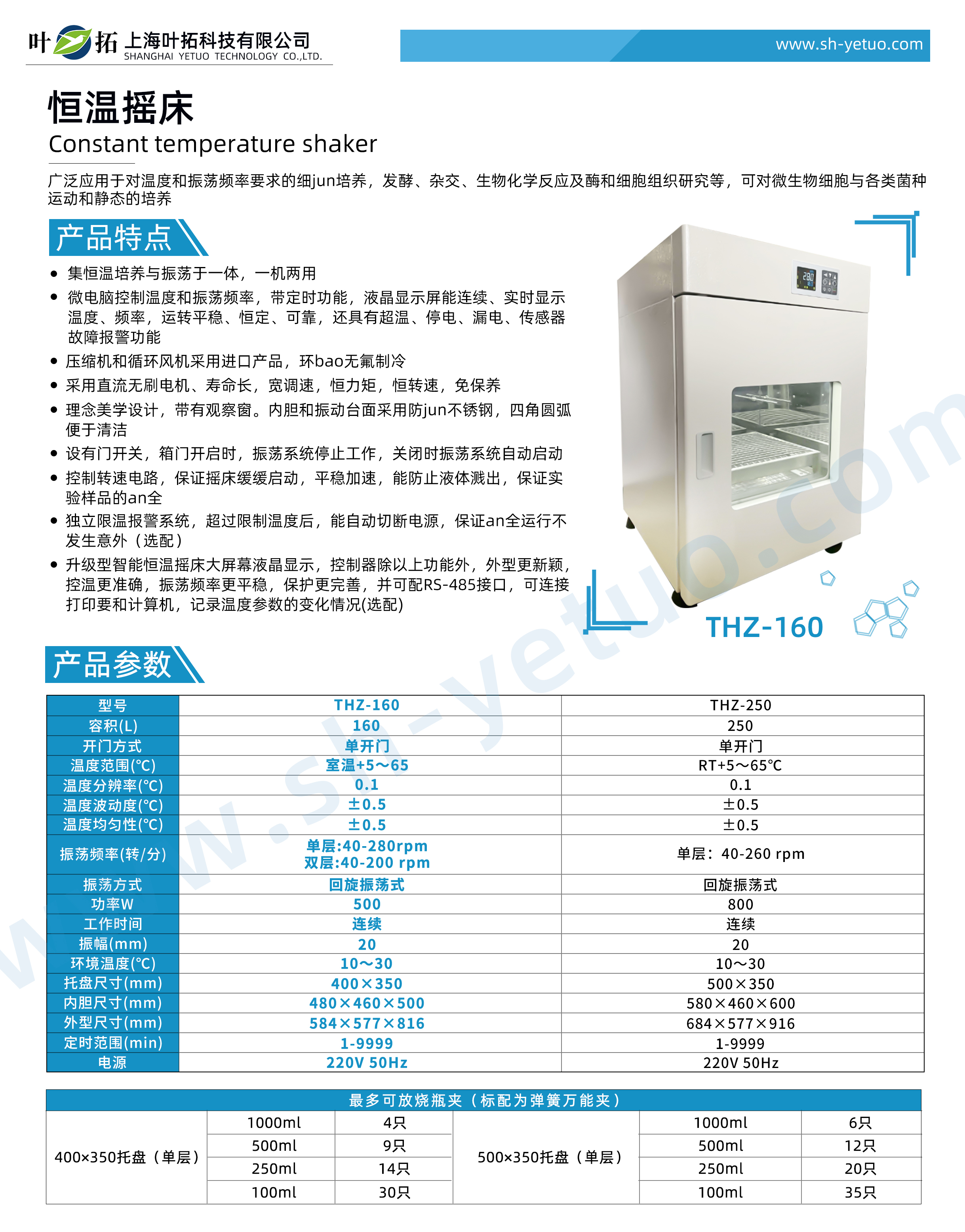

THz series intelligent constant temperature oscillation incubator (constant temperature shaker) is widely used in bacterial culture, fermentation, hybridization, biochemical reaction, enzyme and cell tissue research required by temperature and oscillation frequency. It can culture microbial cells and various strains in motion and static state.
Product features
1. It integrates constant temperature culture and oscillation, and one machine is dual-purpose;
2. The microcomputer controls the temperature and oscillation frequency, with timing function. The LCD can continuously and accurately display the temperature and frequency in real time. The operation is stable, constant and reliable. It also has the functions of over temperature, power failure, electric leakage and sensor fault alarm;
3. The compressor and circulating fan are imported products, which are environment-friendly and fluorine-free refrigeration;
4. DC brushless motor is adopted, with long service life, wide speed regulation, constant torque, constant speed and maintenance free;
5. Conceptual aesthetic design with observation window. The inner tank and vibrating table are made of bacteria proof stainless steel and four corner arc, which is easy to clean;
6. A door switch is set. When the box door is opened, the oscillation system stops working, and when it is closed, the oscillation system starts automatically;
7. The unique speed control circuit ensures that the shaking table starts slowly and accelerates stably, which can prevent liquid splashing and ensure the safety of test samples;
8. The independent temperature limit alarm system can automatically cut off the power supply after exceeding the limit temperature to ensure safe operation without accidents (optional);
9. The upgraded intelligent constant temperature oscillation incubator (constant temperature shaker) has a large screen LCD display. In addition to the above functions, the controller has more novel appearance, more accurate temperature control, more stable oscillation frequency and more perfect protection. It can be equipped with RS-485 interface to connect printer and computer to record the changes of temperature parameters (optional);
